| Battery |
| Battery A/H |
20 |
| Battery Description |
Lithium Battery |
| Battery Voltage (V) |
52 |
| Battery W/H |
1040 |
| Charging Time (Hour) |
10 |
| Max Range (KM) |
125 |
| Average Range (KM) |
80 |
| Battery Weight (KG) |
6 |
| Charger Model |
52V with ST Charger Custom Charging Port |
| Removable Battery |
Yes |
| Throttle Range (KM) |
35 |
| Battery Cell Brand |
Samsung |
| Battery Cell Type |
21700 |
| General Specifications |
| Colour |

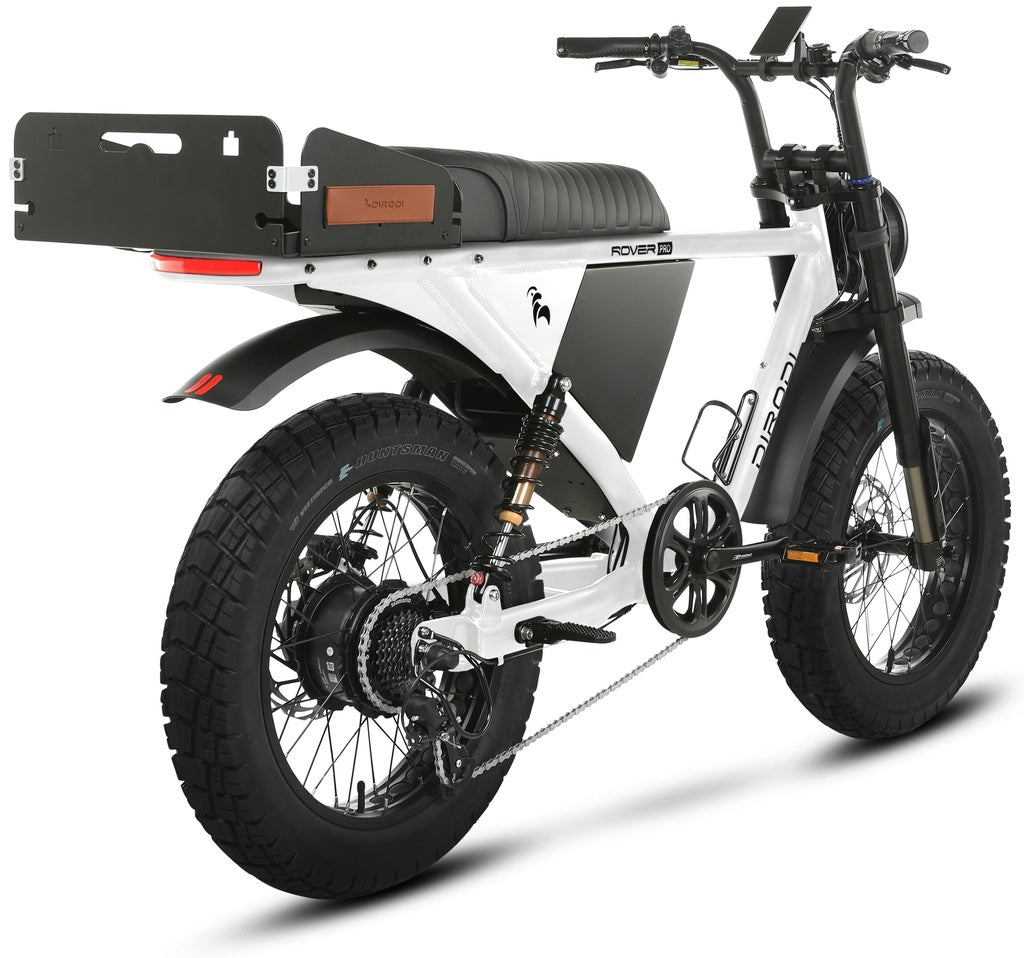

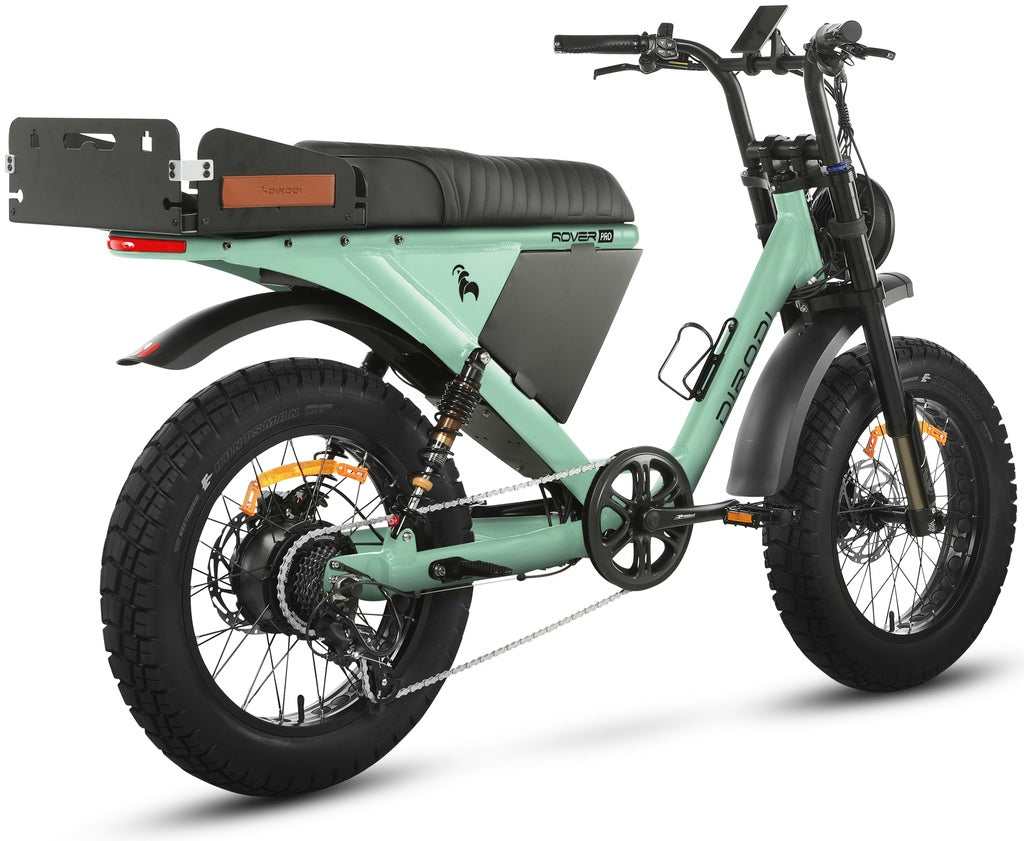

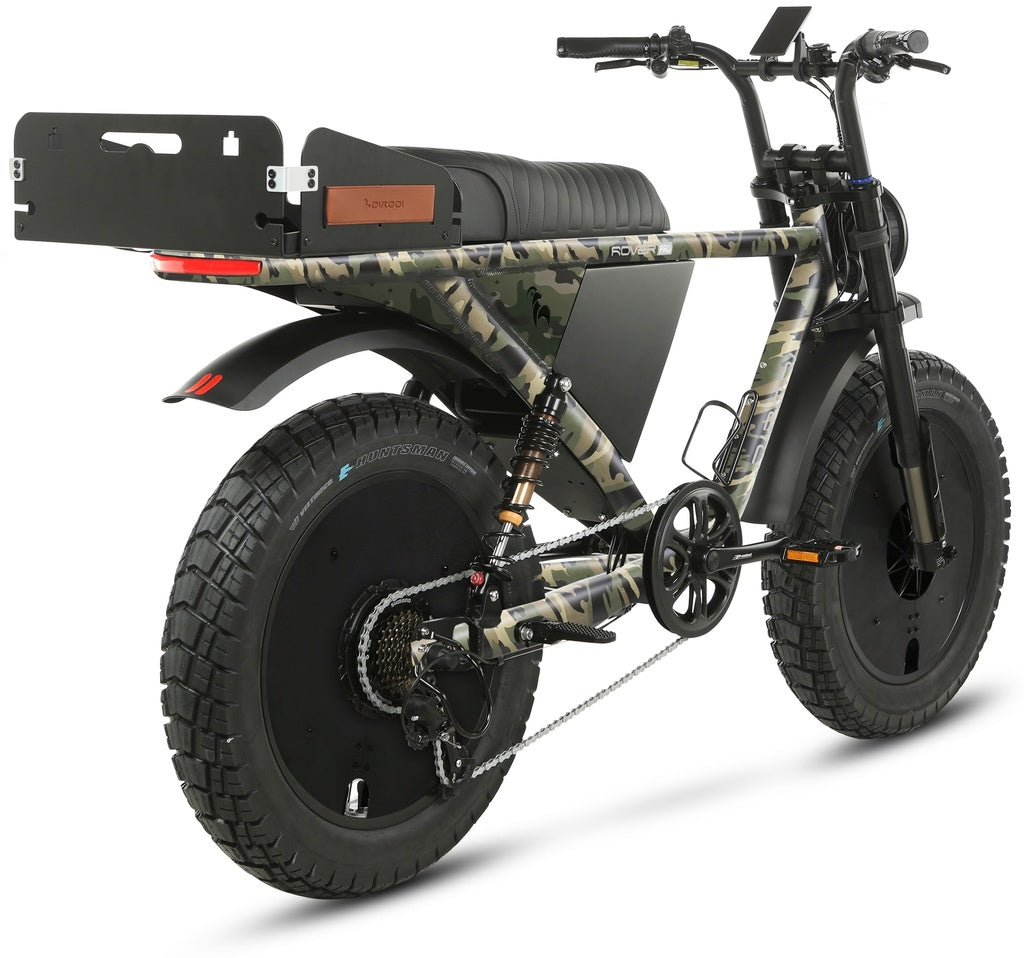

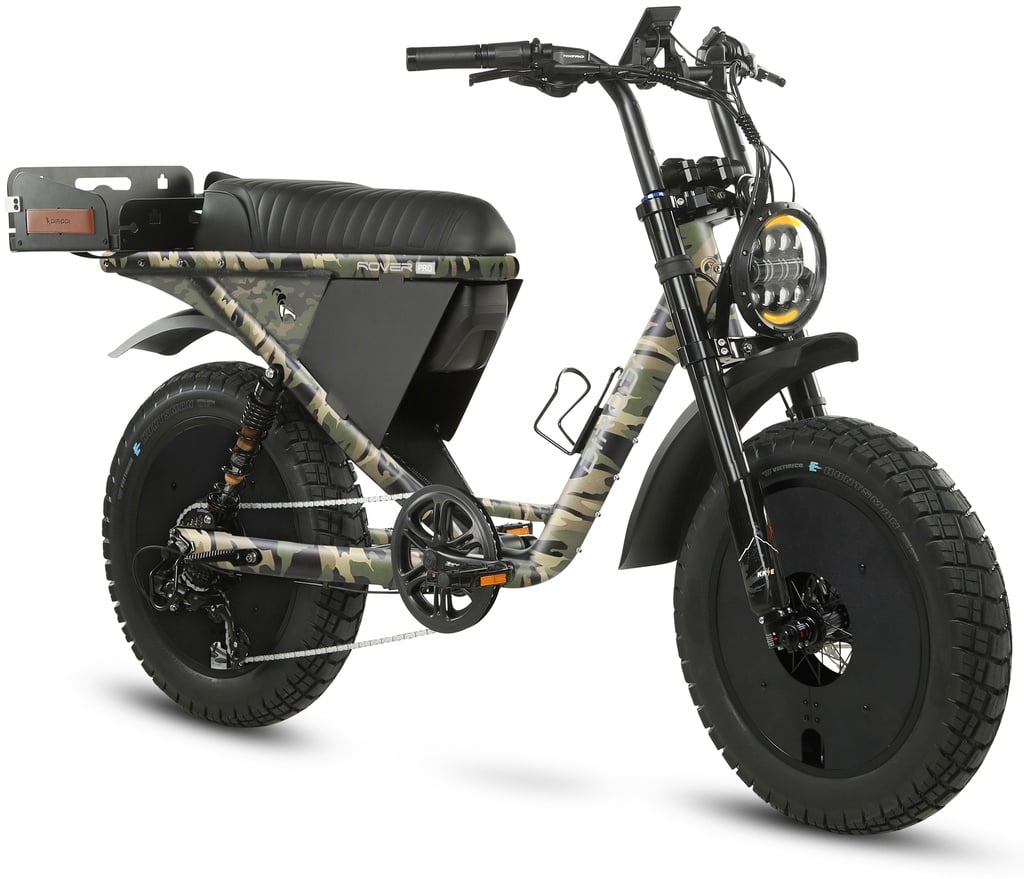

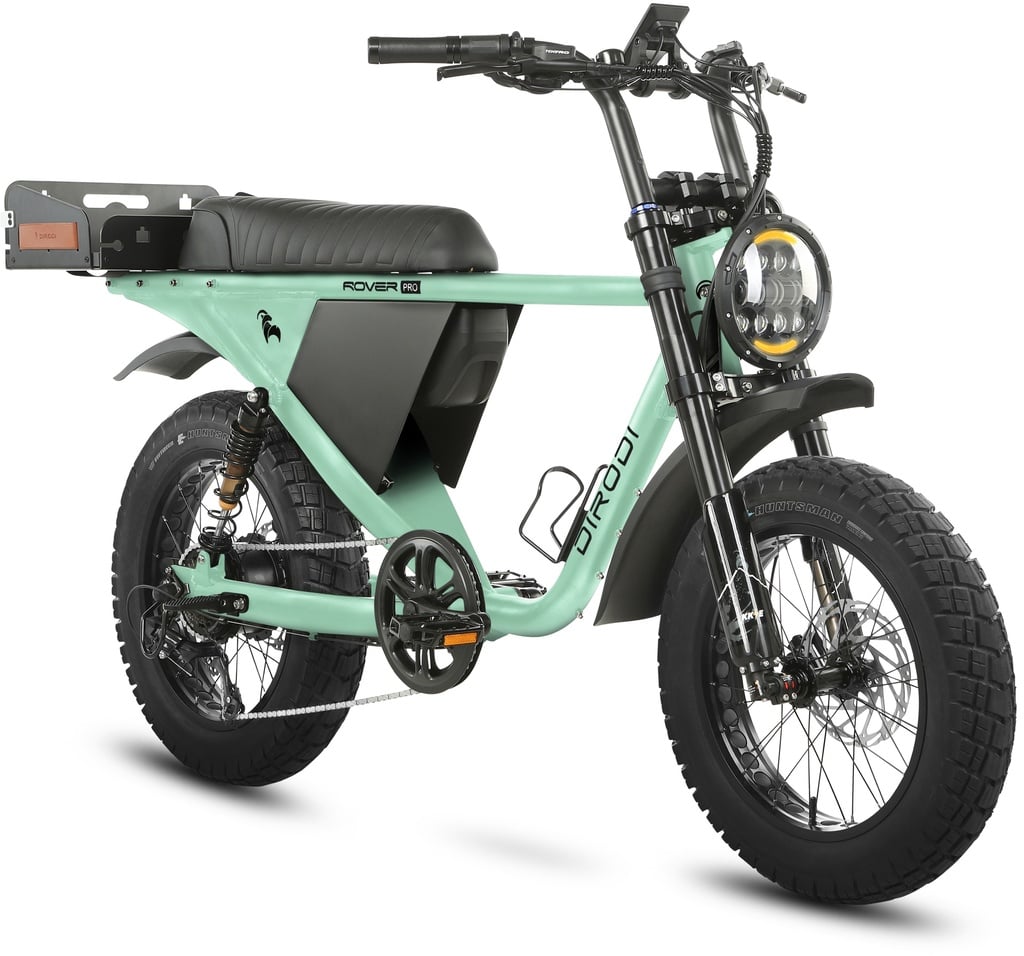

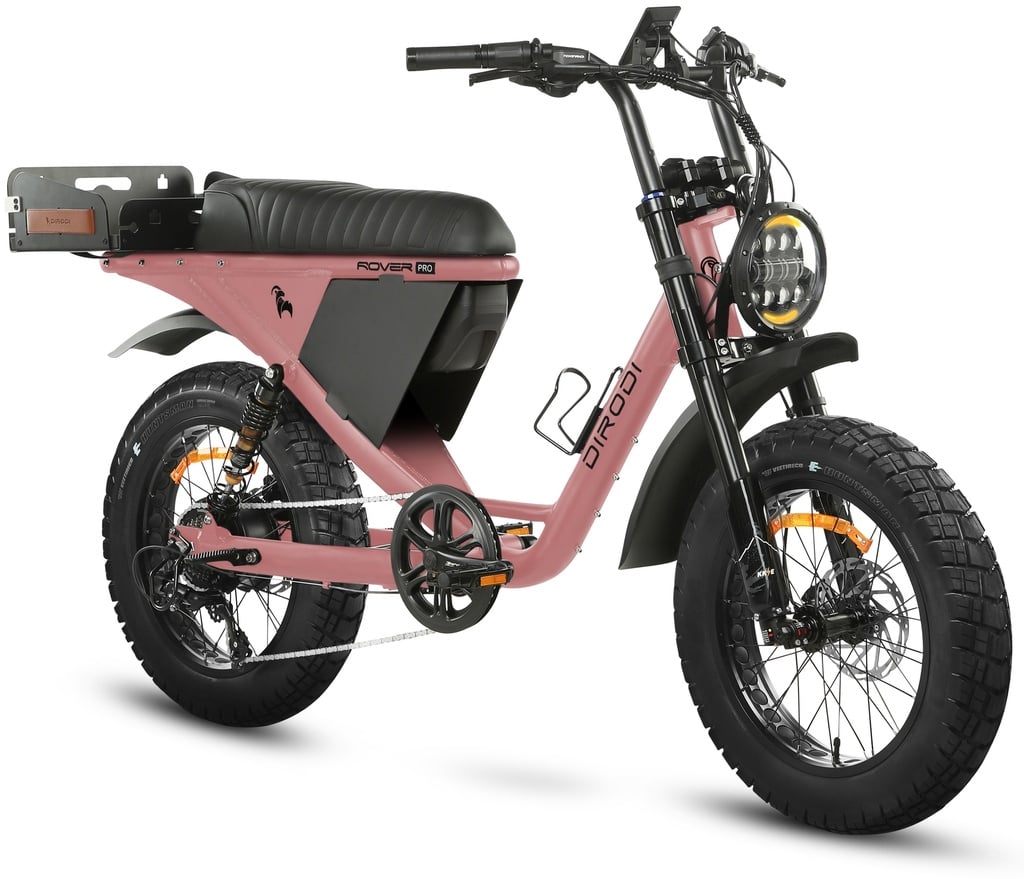

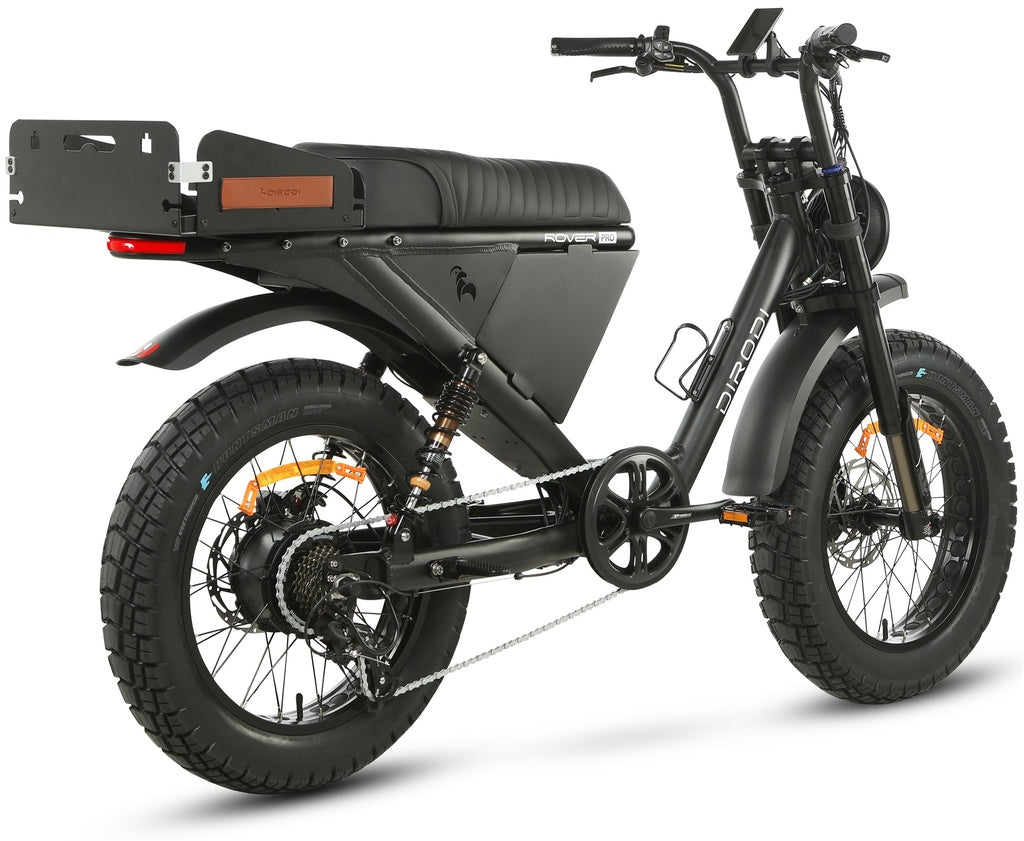

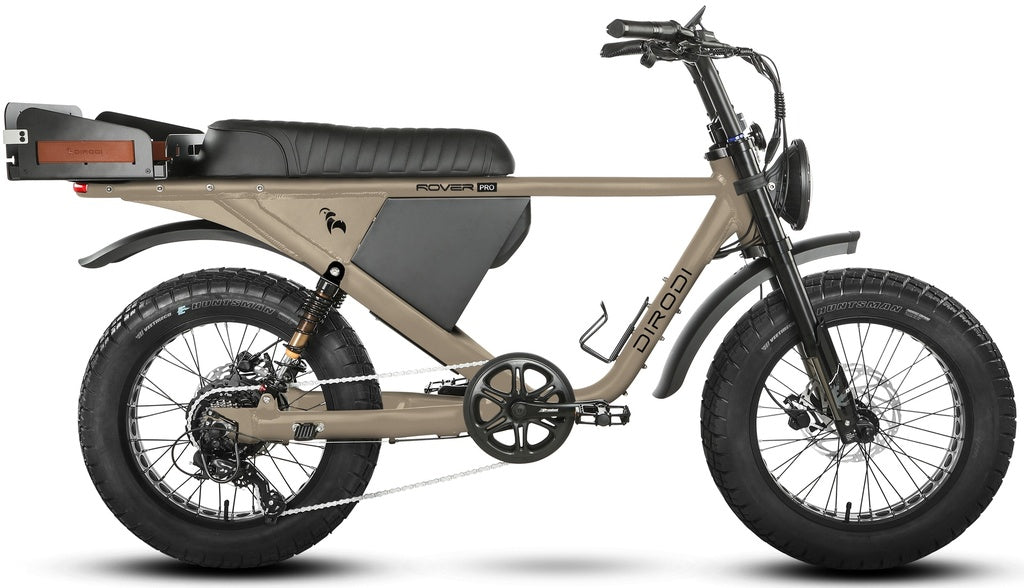

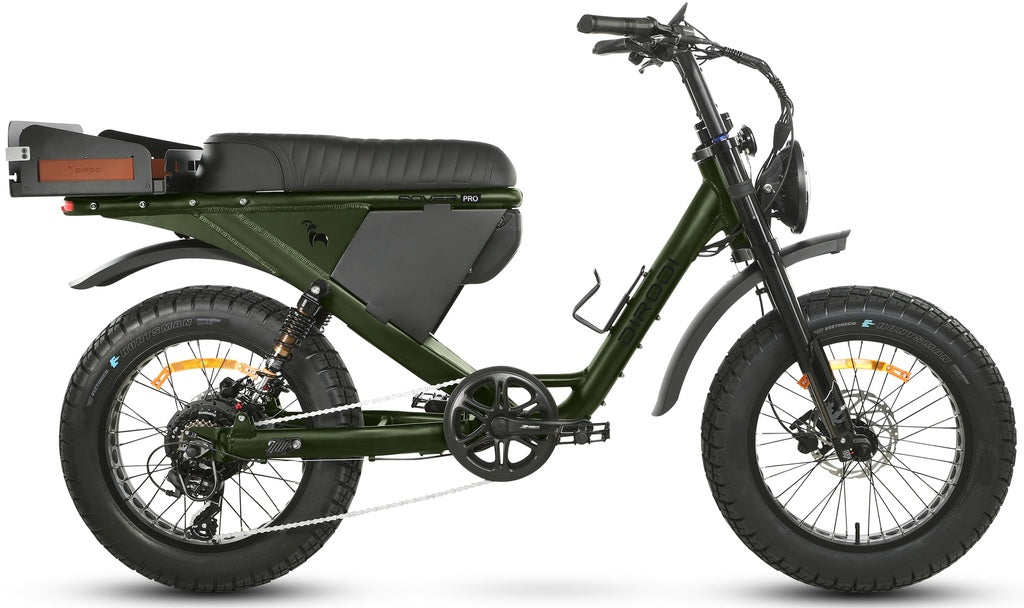

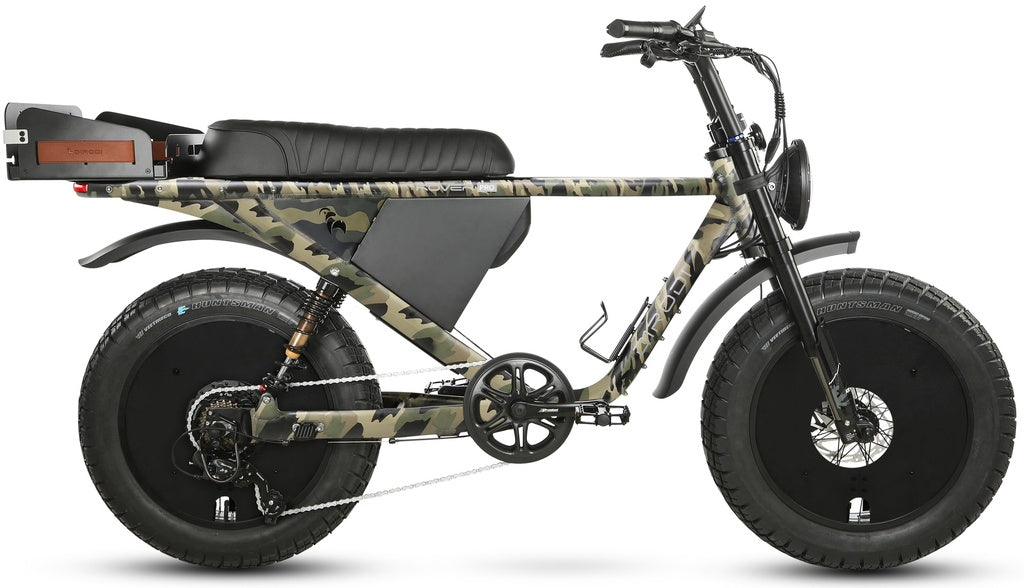

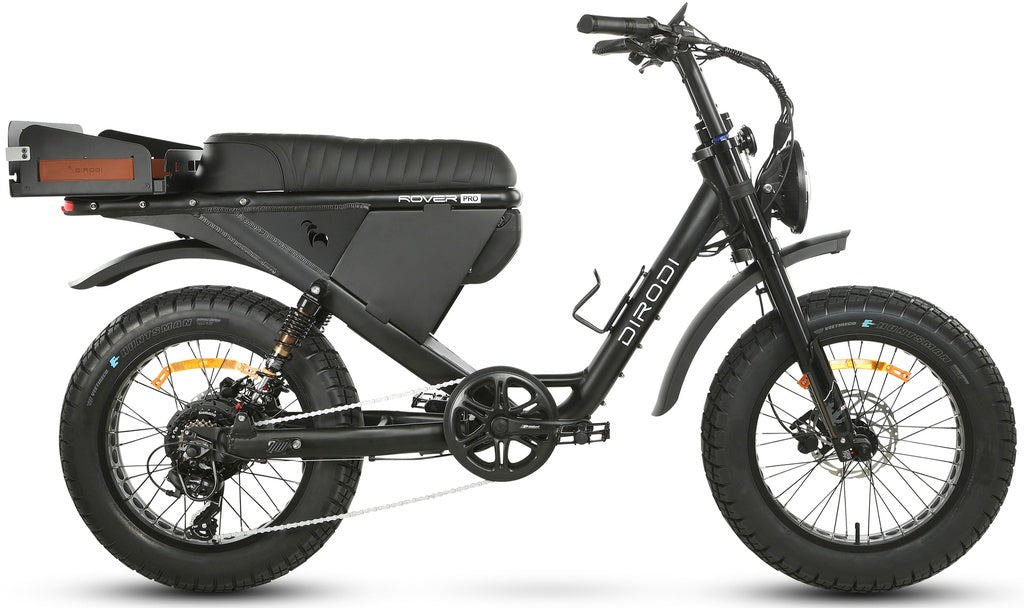

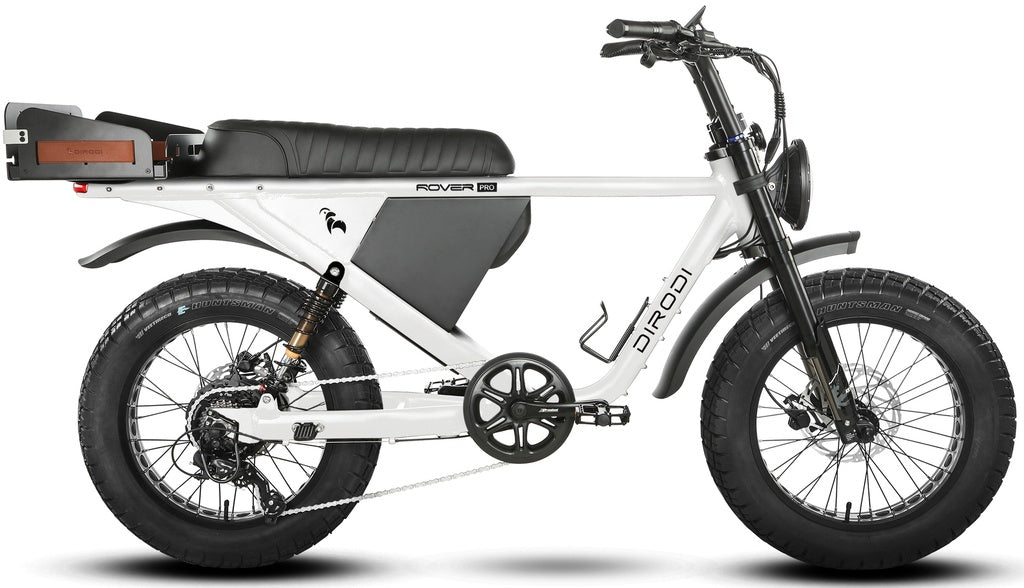

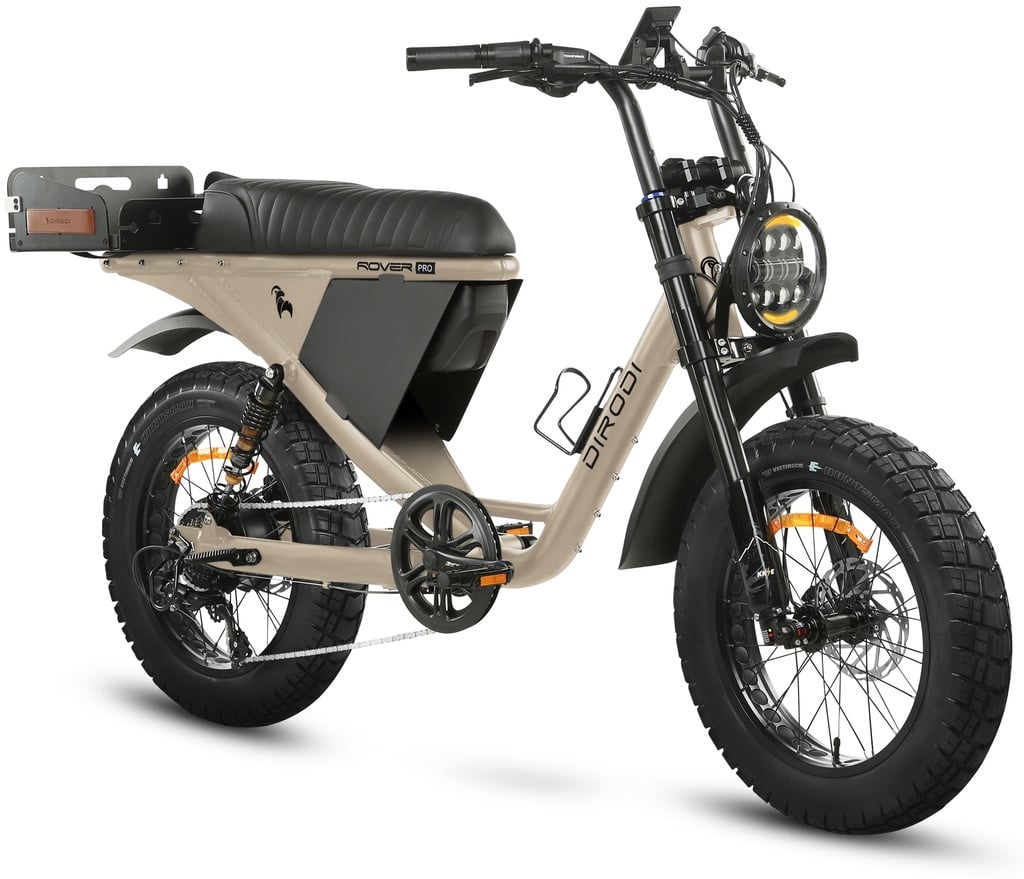

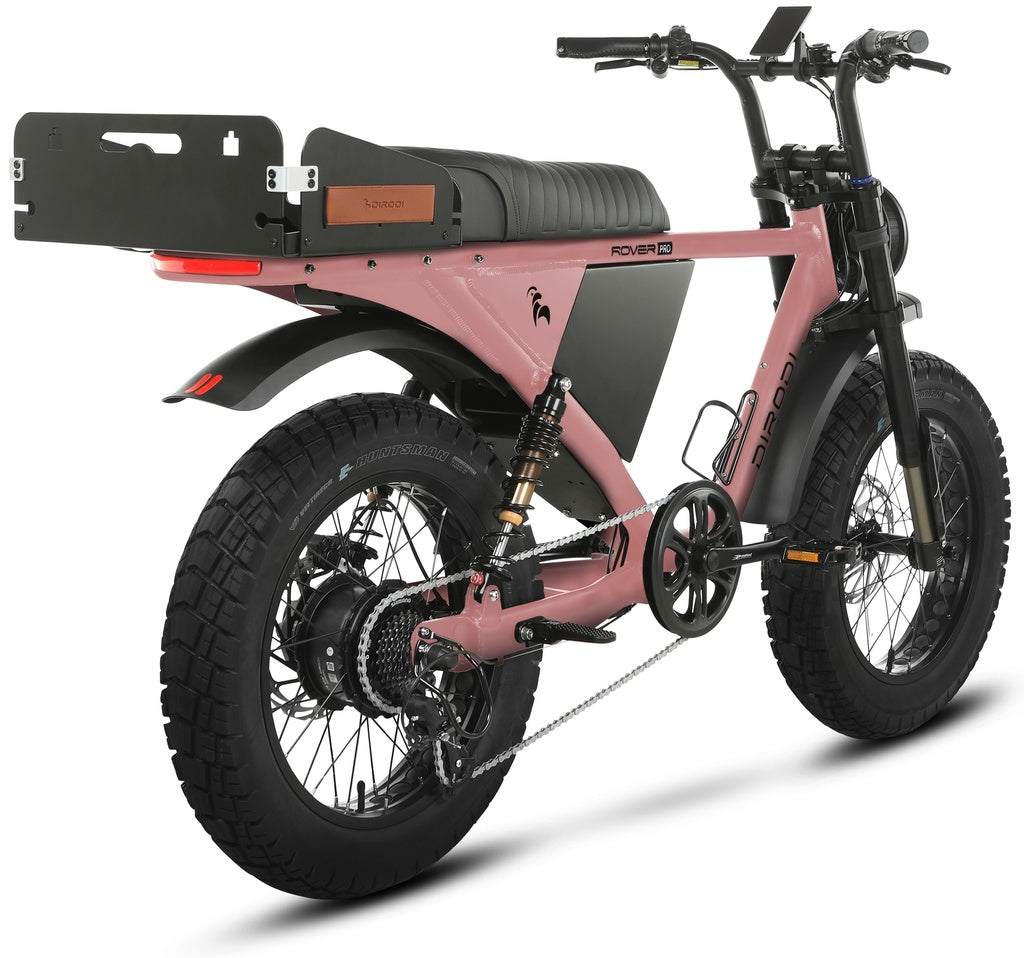

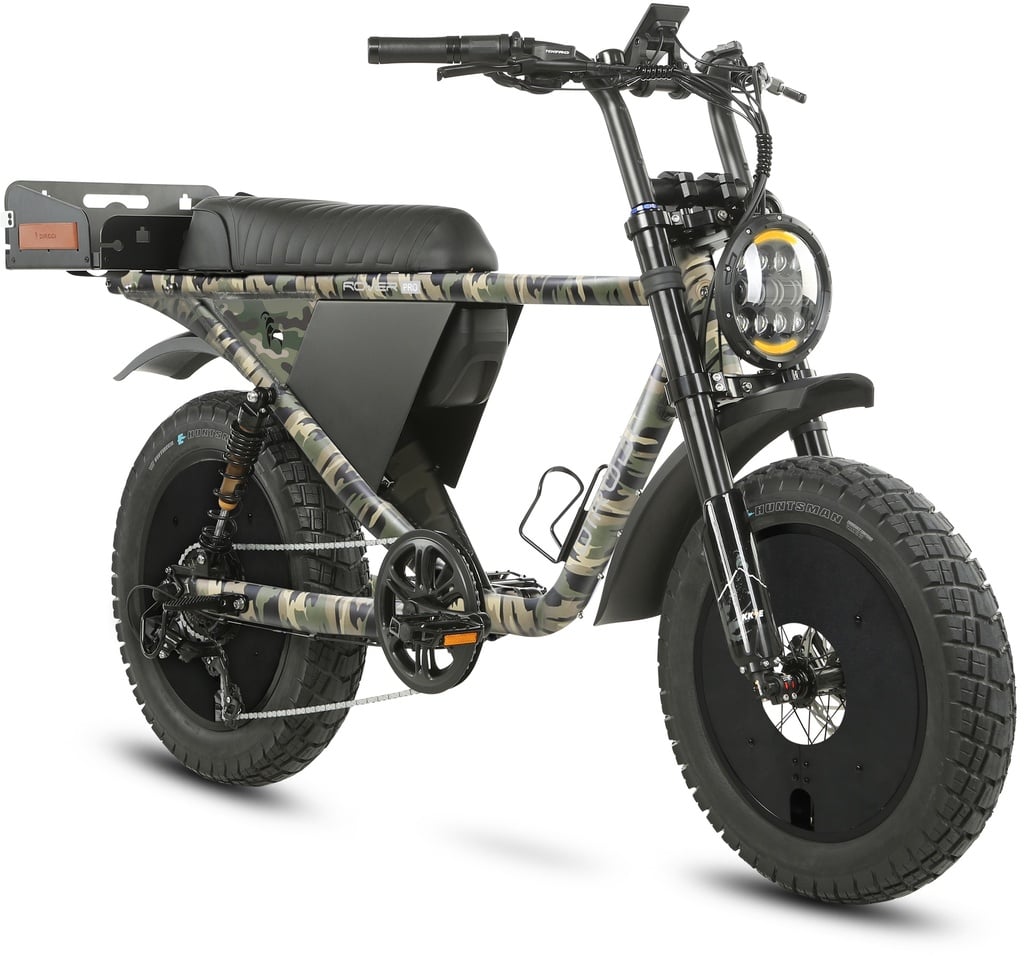

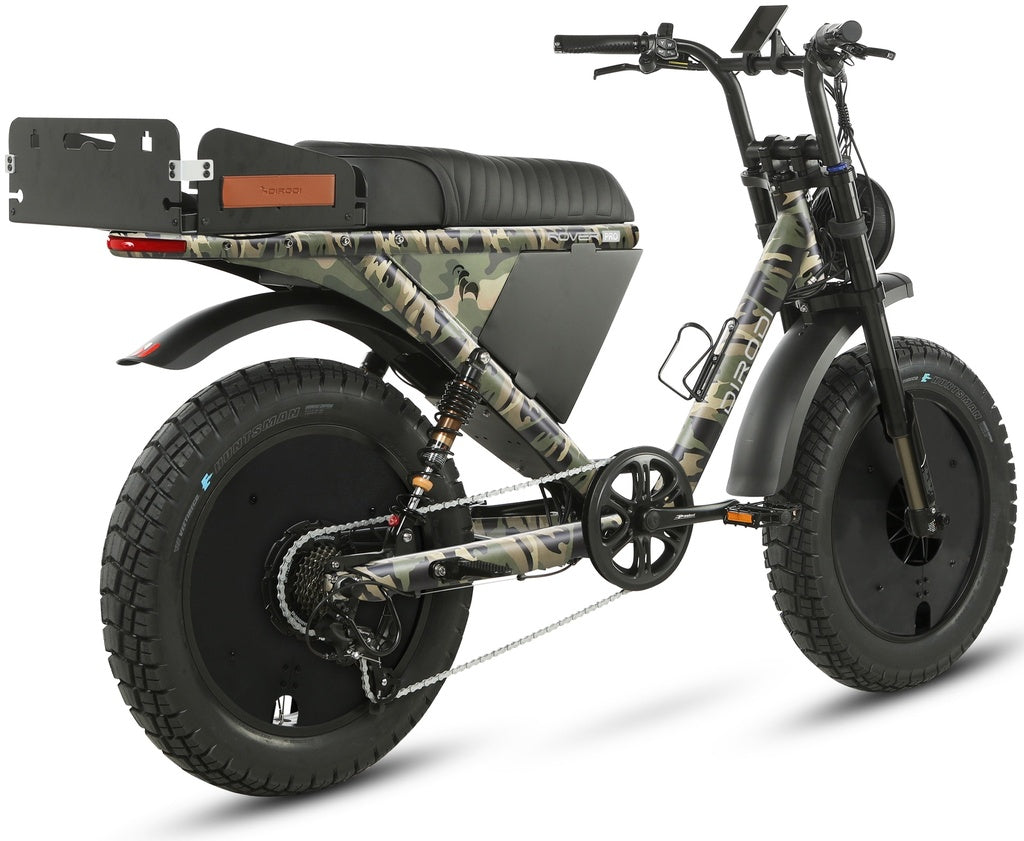

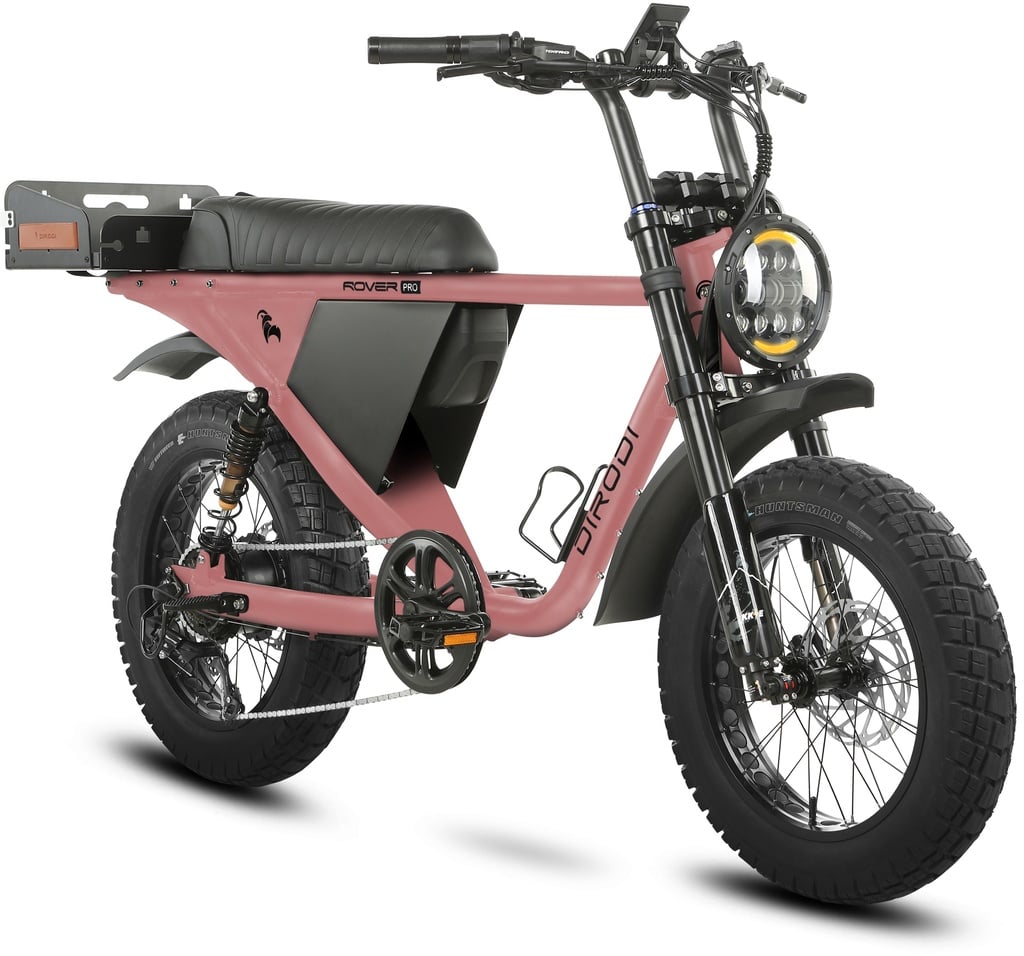

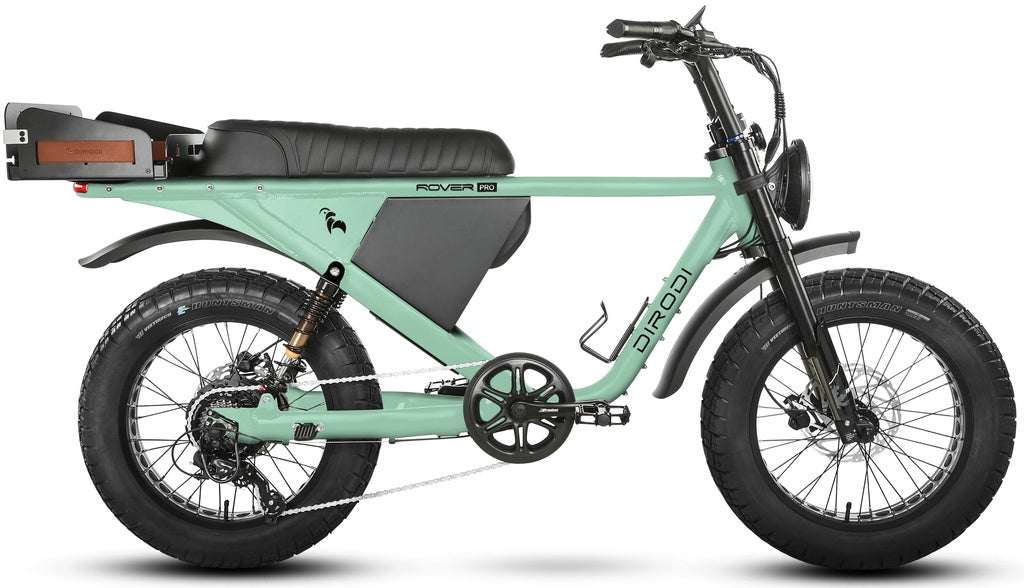

Jet Black or Racing Green or Pearl White or Caramel Latte or Seafoam Green or Bubblegum Pink or Recon Camo
|
| Road Legal |
Yes (250W) | No (1000W) |
| Road Legality Note |
250W is road legal given the throttle is not unlocked and the max speed hasn't increased from the default 25km/h. 250W can be unlocked to 500W for NSW customers only and will remain road legal. 1000W is for on off-road or on private property use only |
| Waterproof Rating |
IP54 |
| Ergonomics |
| Sitting Position |
Upright |
| Grips Model |
Velo Leather Grips (Black) |
| Handlebars Type |
Riser |

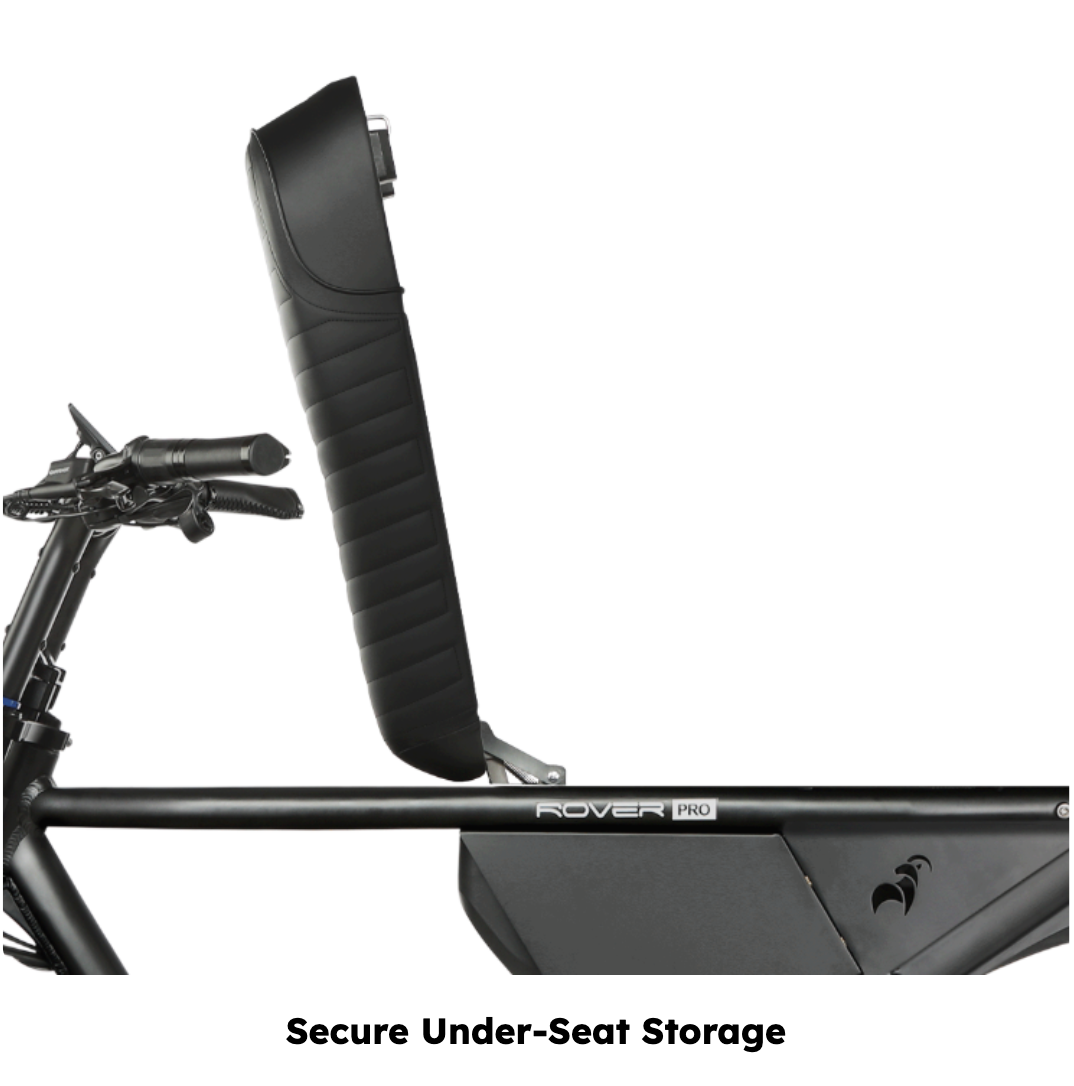

| Saddle Model |
Custom 60CM Long 2-Person Seat |
| Accessories |
| Front Basket |
Optional |
| Bell |
Yes |
| Bottle Holder |
Yes |
| Front Carrier |
Optional |
| Front Light |
Yes (Integrated) |
| Mudguards |
Yes |
| Other |

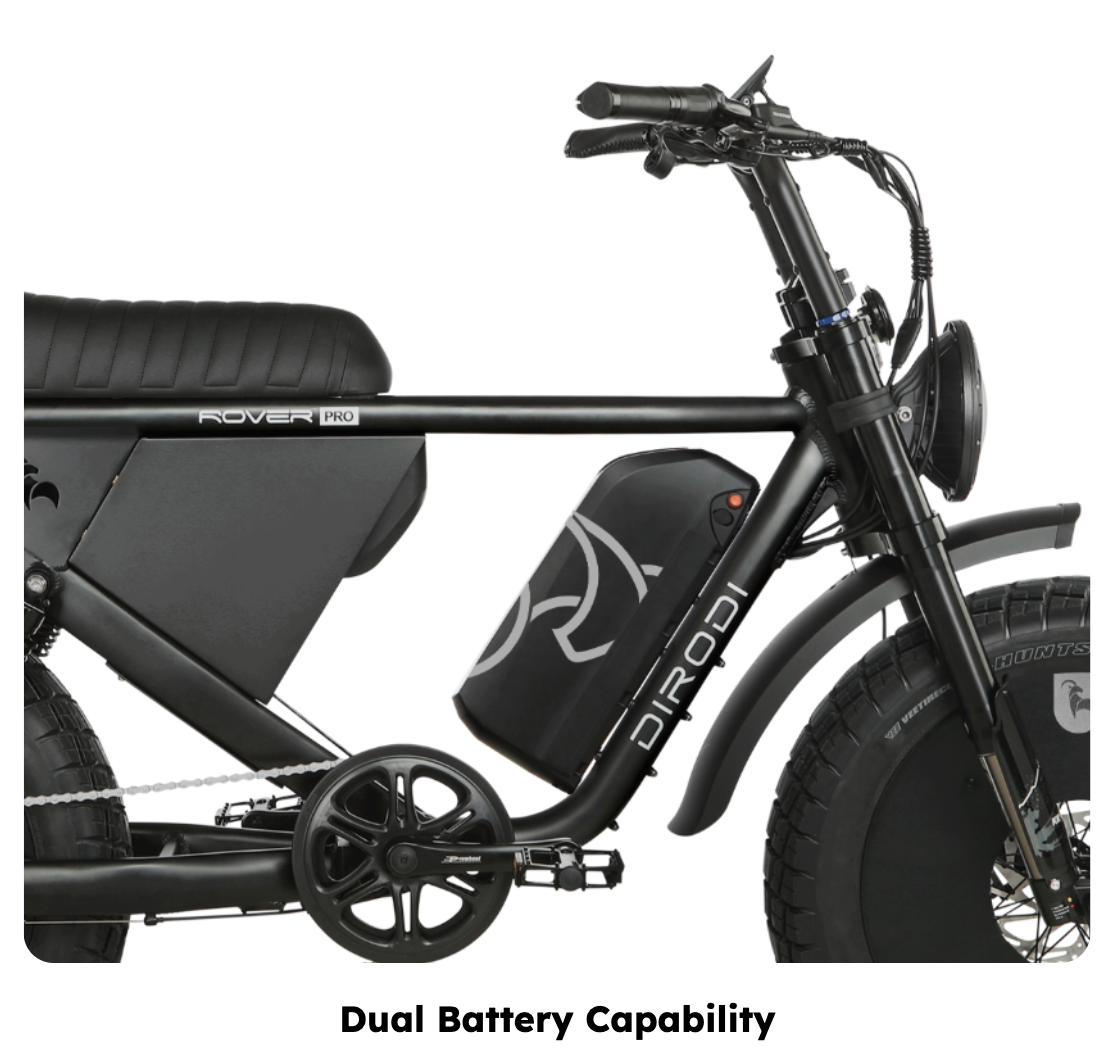

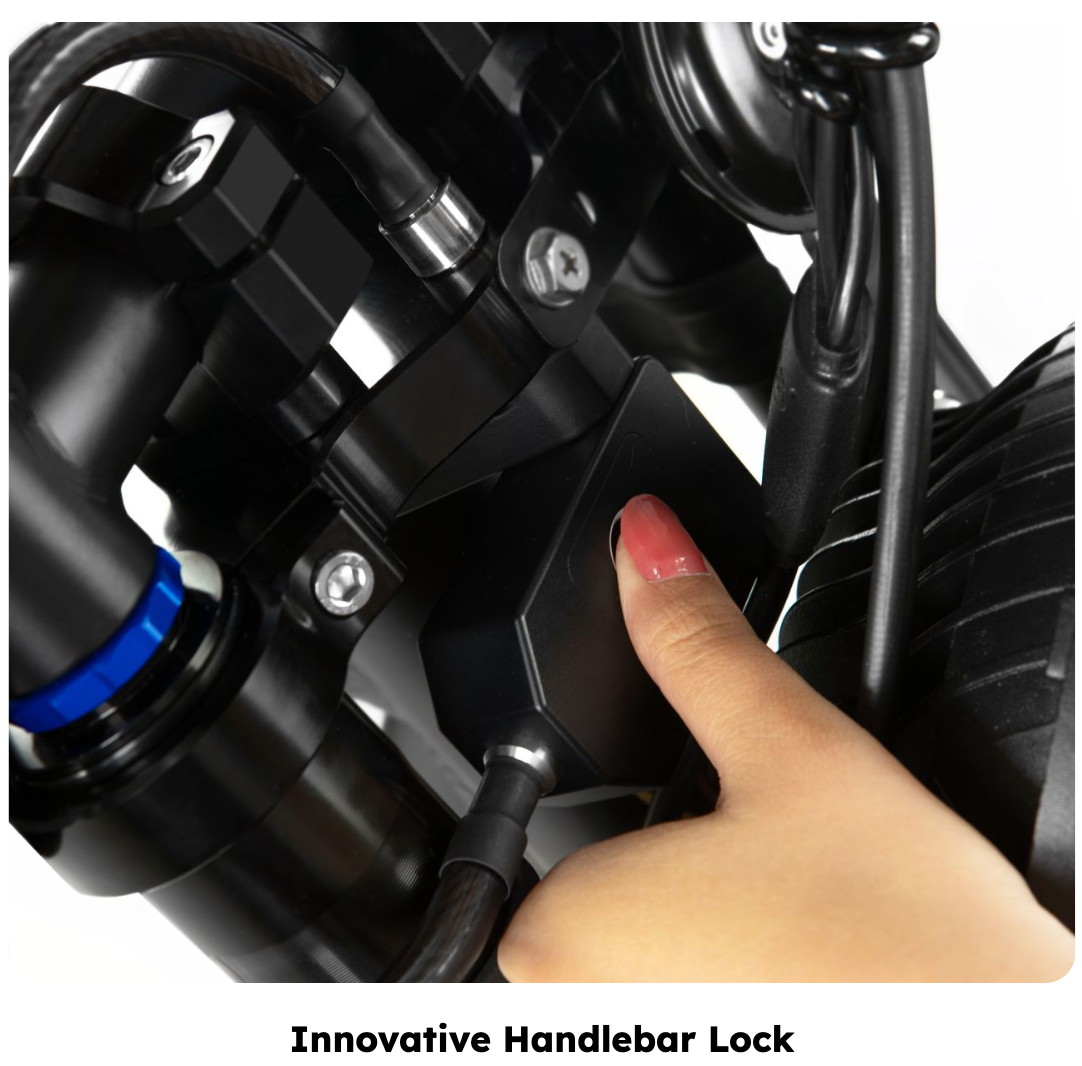

Rear Basket, Rear Passenger Footrests, Height Extender (optional), 2nd Battery (optional), Front Fingerprint Lock (optional) |

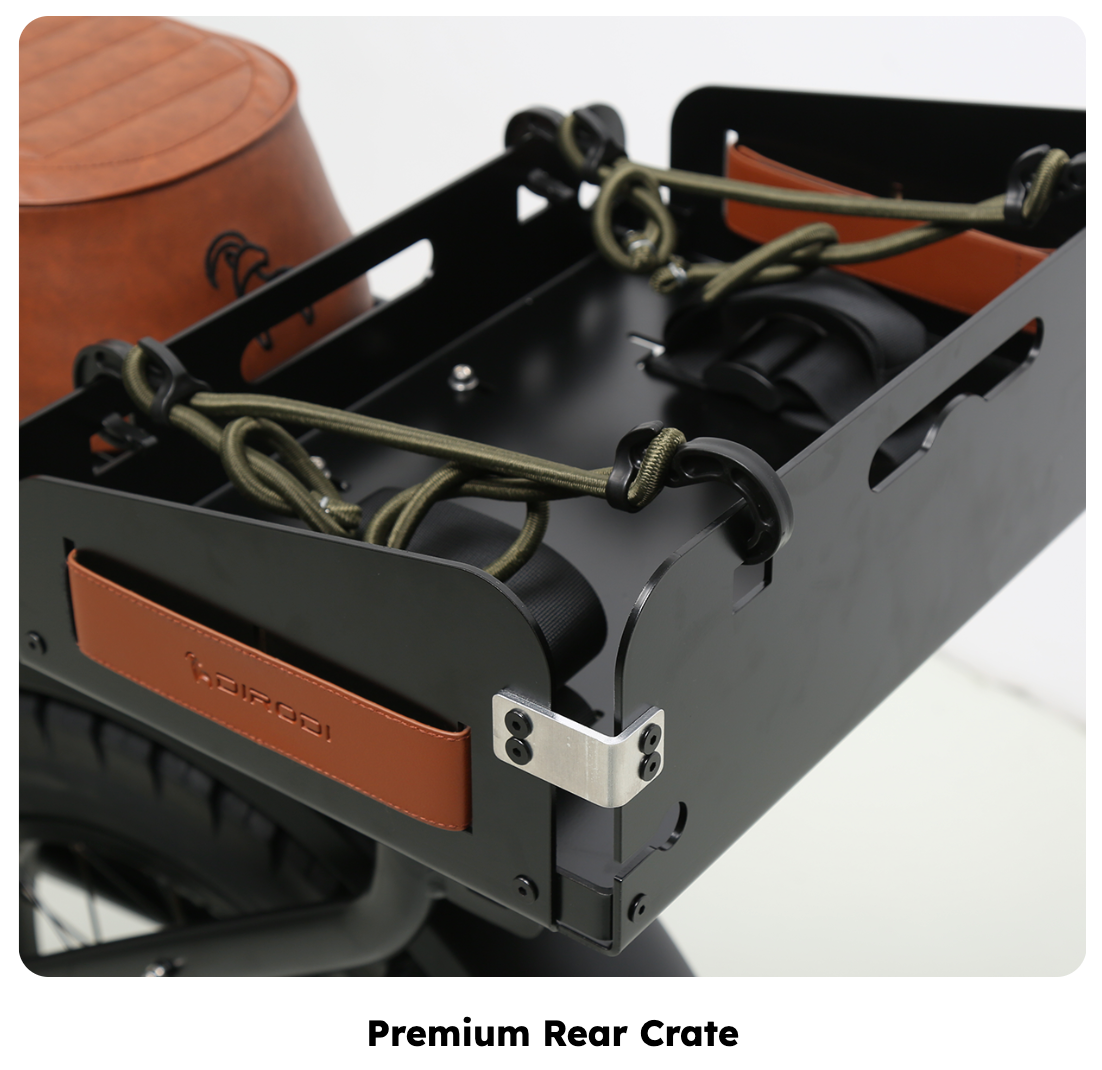

| Rear Basket |
Yes (40cm (L) * 28cm (W) * 7-14cm (H)) |

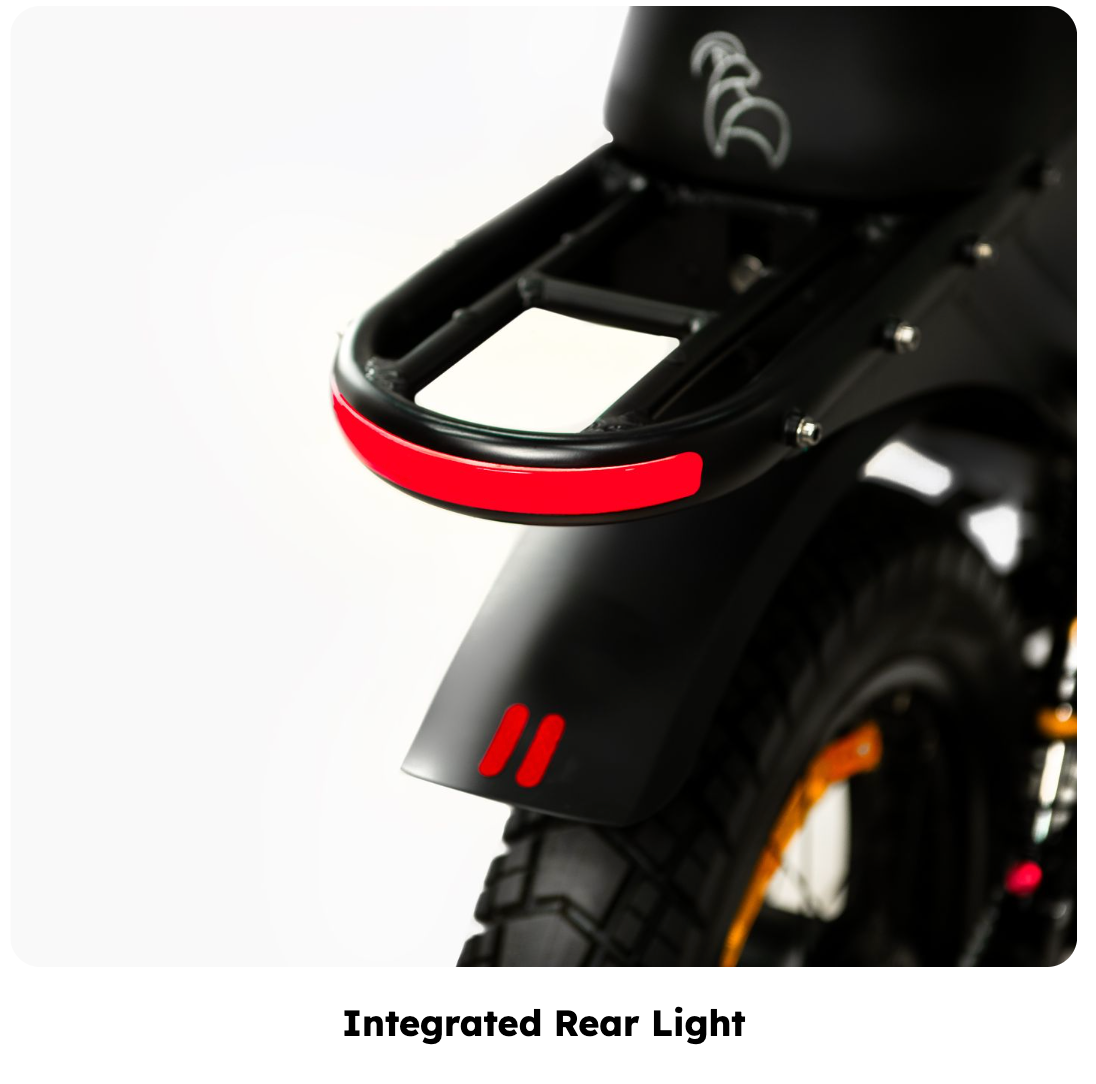

| Rear Light |
Yes (Integrated) |
| Rear Rack |
Yes (Integrated) |

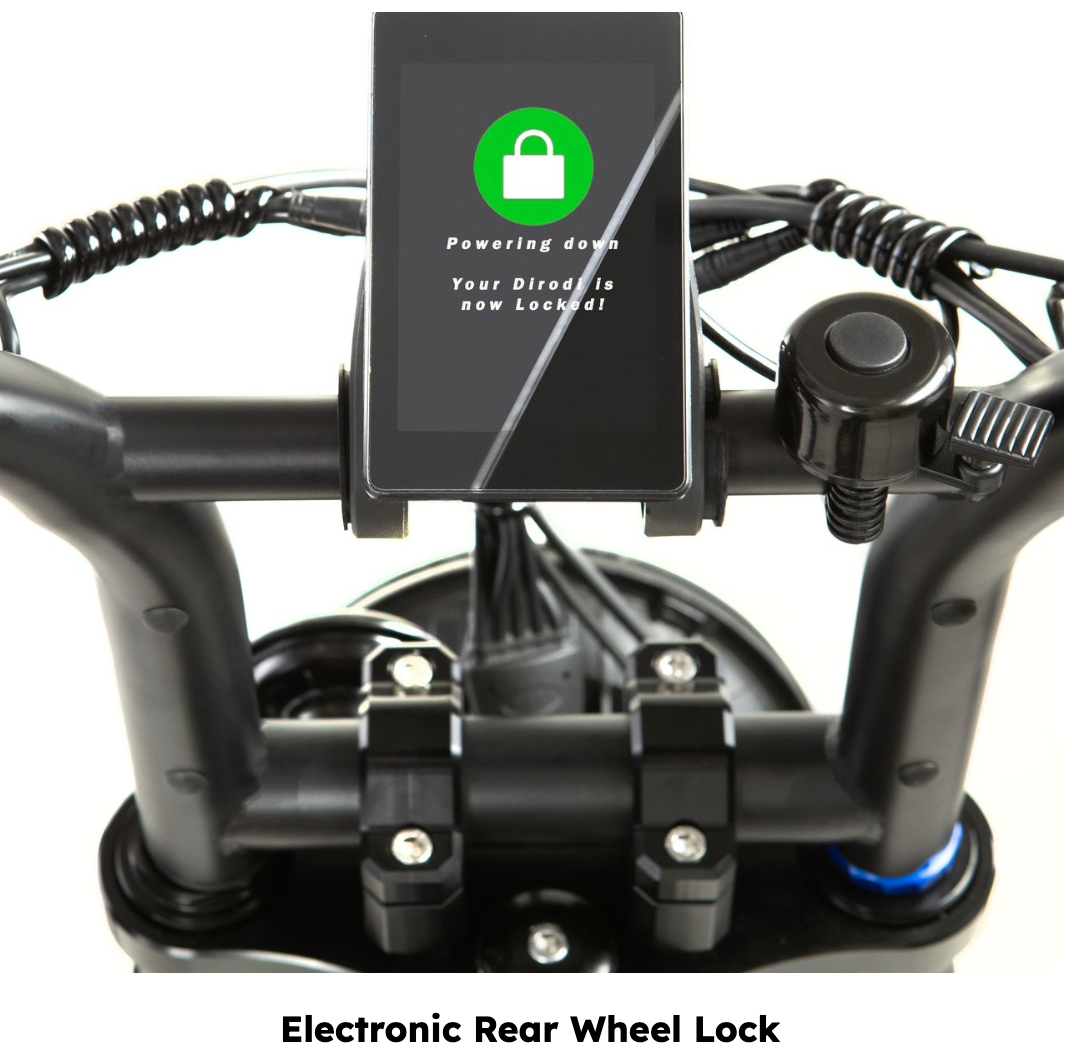

| Wheel Lock |
Rear |
| Brakes |
| Brake Brand / Model |
Tektro HD-E3520 (Hydraulic) |
| Brake Cut off Sensor |
Yes |
| Brake Pads Model/Material |
E10.11/Compound |
| Rotor Size (MM) |
203mm |
| Drivetrain |
| Cassette Tooth |
14 - 34 |
| Chain Model |
KMC Z7RB with Anti-Rust Coating |
| Chainring Model |
Prowheel Double-Wall Chainring |
| Chainring Tooth Count |
48 |
| Derailleur Model |
Shimano Tourney |
| Number of gears |
7 |
| Suspension |
| Suspension Type |
Front & Rear |
| Suspension Compression Adjustment |
Yes |

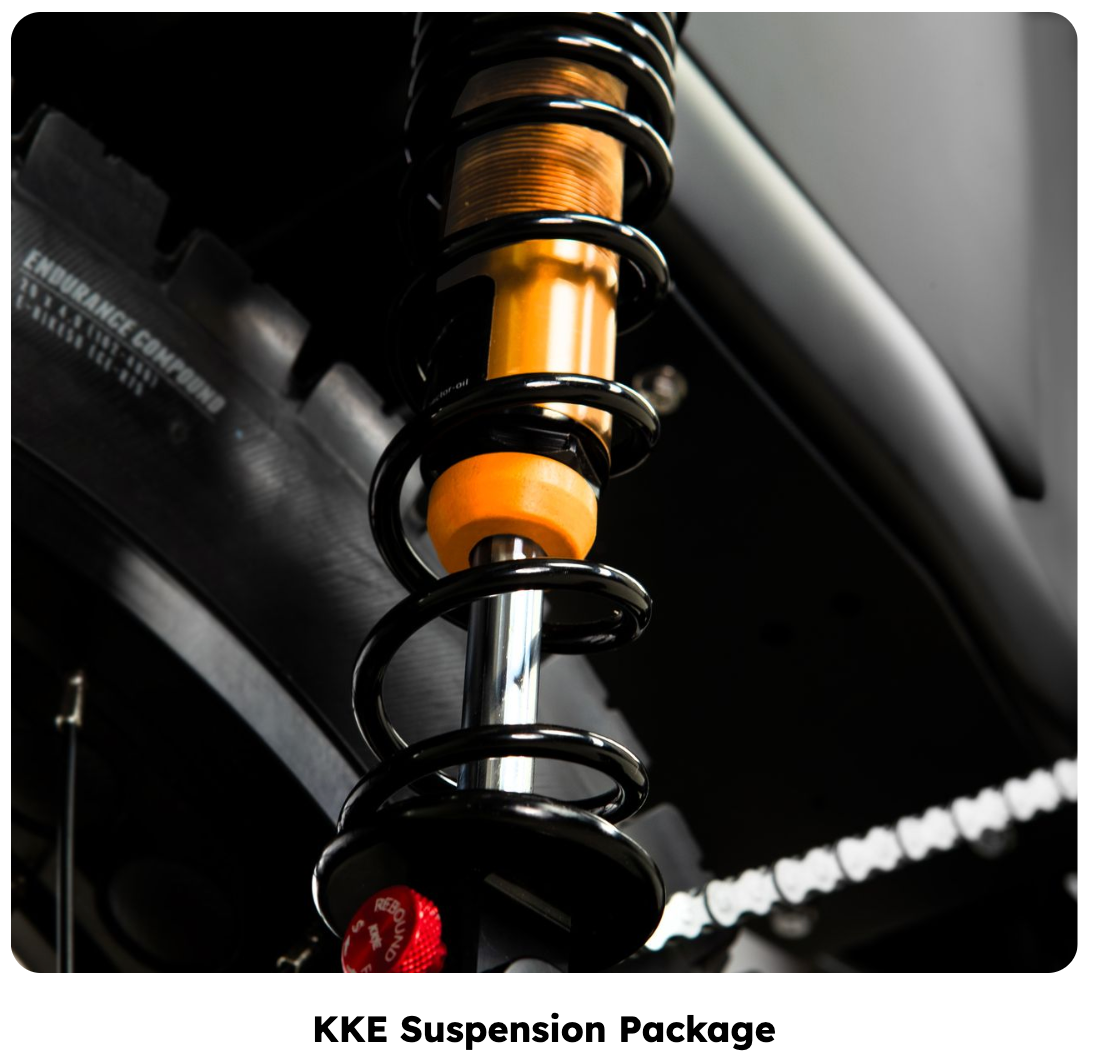

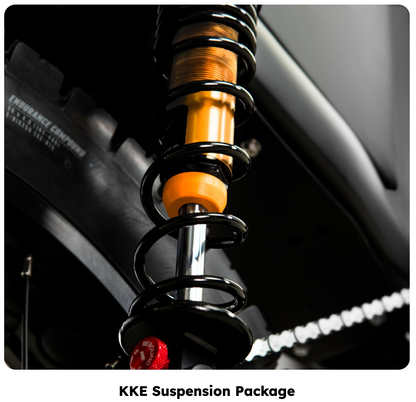

| Suspension Model |
KKE |
| Suspension Travel (CM) |
8cm (Front), 7cm (Rear) |
| Throttle |
| Throttle |
Yes |
| Throttle Type |
Twist |
| Default Throttle Max Speed (KM/H) |
6 |
| Throttle Max Unlocked Speed - For offroad Use (KM/H) |
35 (250W) | 40 (500W) | 50 (1000W) |
| Tyre |
| Tyre Size (Inch) |
20 |
| Tyre Brand / Model |
Vee Huntsman |
| Tyre Width (Inch) |
4 |
| Tyre Colour |
Black |
| Frame |
| Frame |
Step-Over or Step-Thru
|
| Frame Size (Inch) |
20 |
| Max Load (KG) |
180 |
| Frame Material |
Aluminium Alloy 6061 |
| Rider Height Guide |
| Min Rider's Height (Depreciated) |
160 (5' 3") |
| Rider Max Height (CM) |
190 (6′ 3″) |
| Motor |
| Motor Power (W) |
250W/500W or 1000W
|
| Motor Brand / Model |
Shengyi Rear Hub Motor |
| Max Unlocked Speed - For Offroad Use (KM/H) |
35 (250W) | 40 (500W) | 50 (1000W) |
| Default Maximum Speed (KM/H) |
25 |
| Motor Type |
Brushless Geared Rear Hub Motor |
| Torque (NM) |
60 (250W) | 70 (500W) | 95 (1000W) |
| Bike Geometry |
| Axle to axle length (CM) |
120 |
| Handlebars Width (CM) |
60 |
| Total length (CM) |
180 |
| Bike Weight (KG) |
40 |
| Adjustable Handlebars Angle |
Yes |
| Adjustable Seat Height |
No |
| Box Gross Weight (KG) |
49 |
| Maximum Handlebars Height (CM) |
113 |
| Maximum Seat Height (CM) |
83 |
| Minimum Handlebars Height (CM) |
113 |
| Minimum Seat Height (CM) |
83 |
| Standover Height (CM) |
30 (Step-Through Frame), 80 (Step-Over Frame) |
| Packaging Specifications |
| Packaging Dimensions (CM) | L x W x D |
164 x 32 x 98 |
| Wheels |
| Front Wheel Mount Type |
Thru-Axle |
| Rear Wheel Mount Type |
Nuts |
